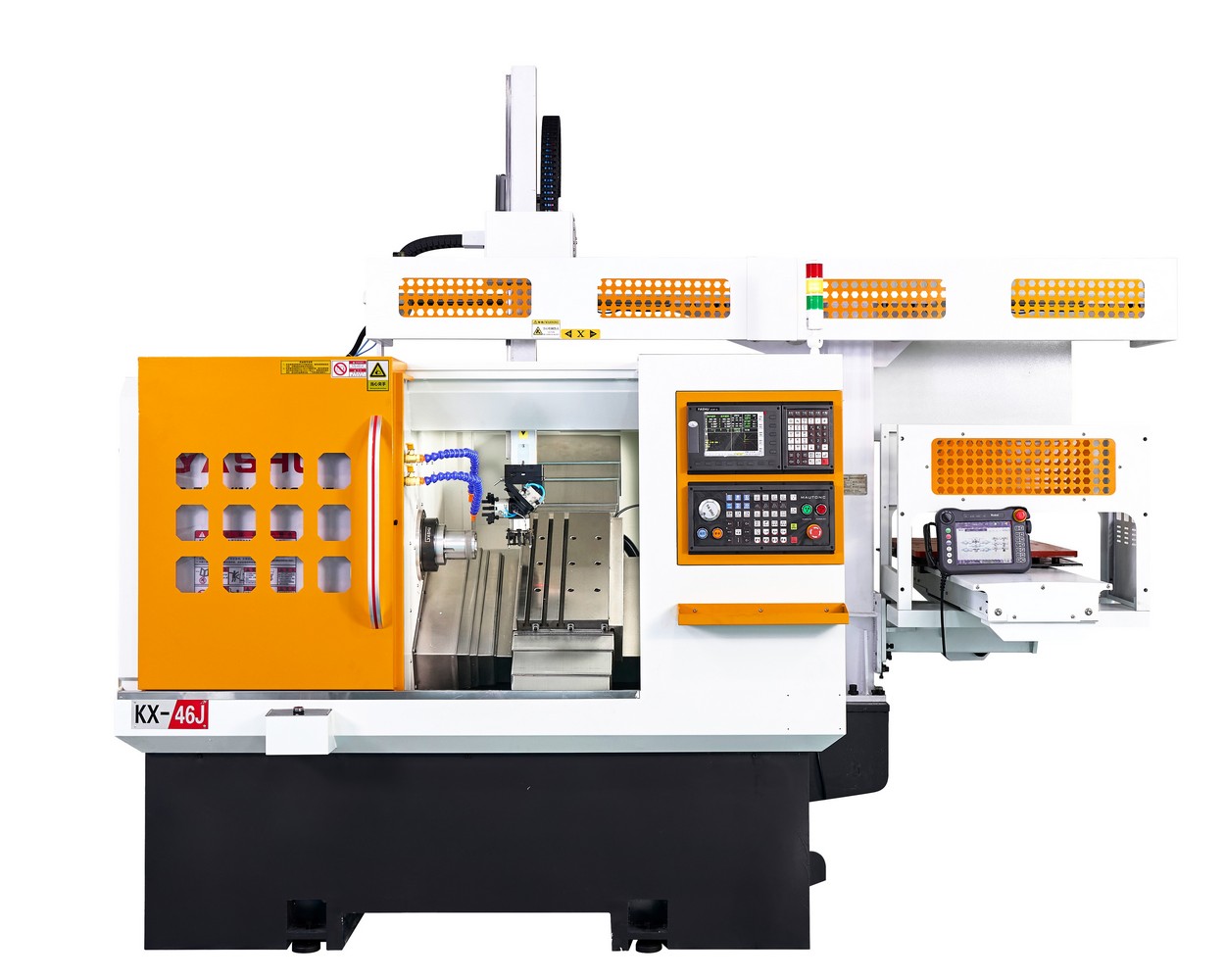

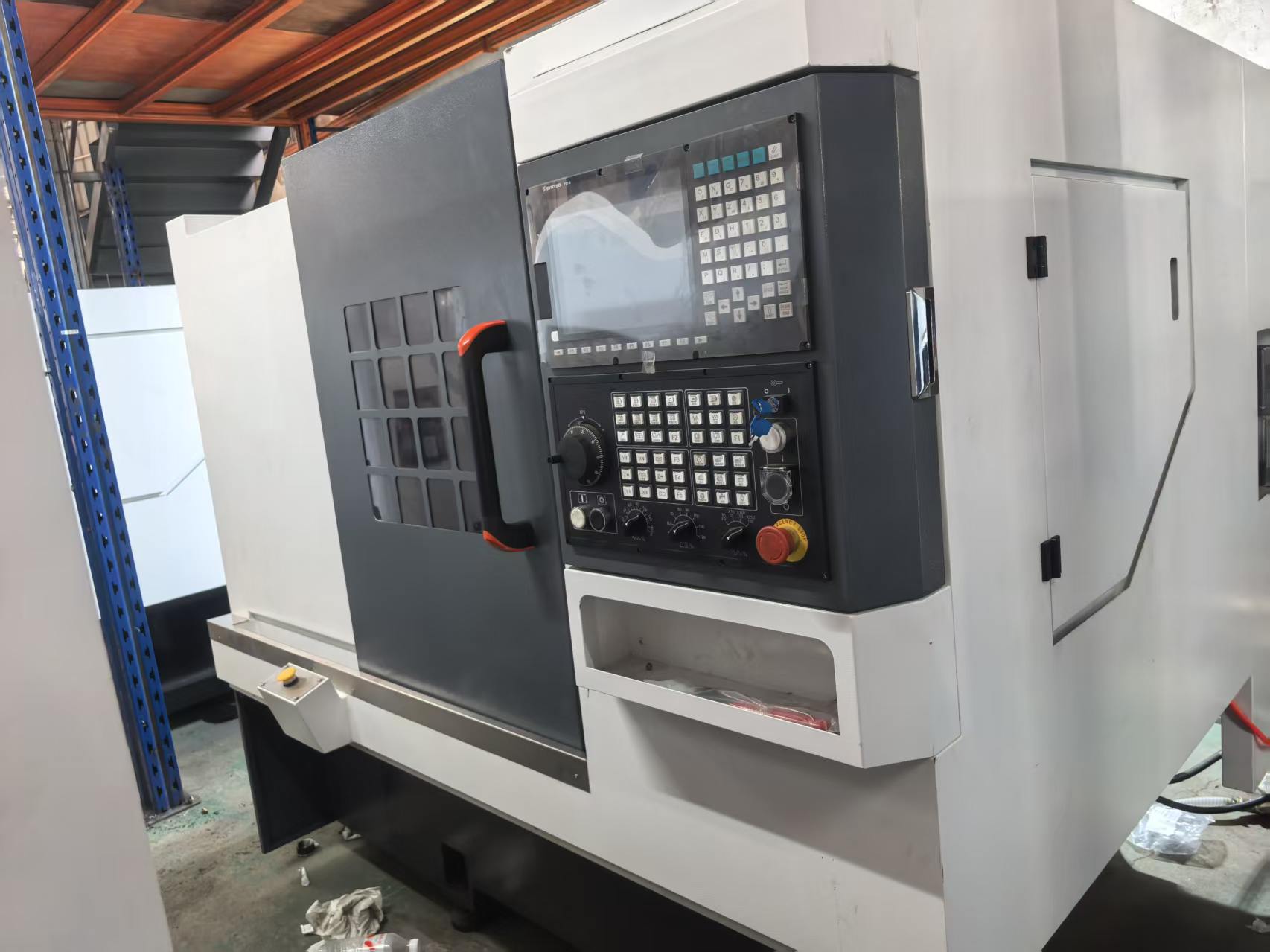

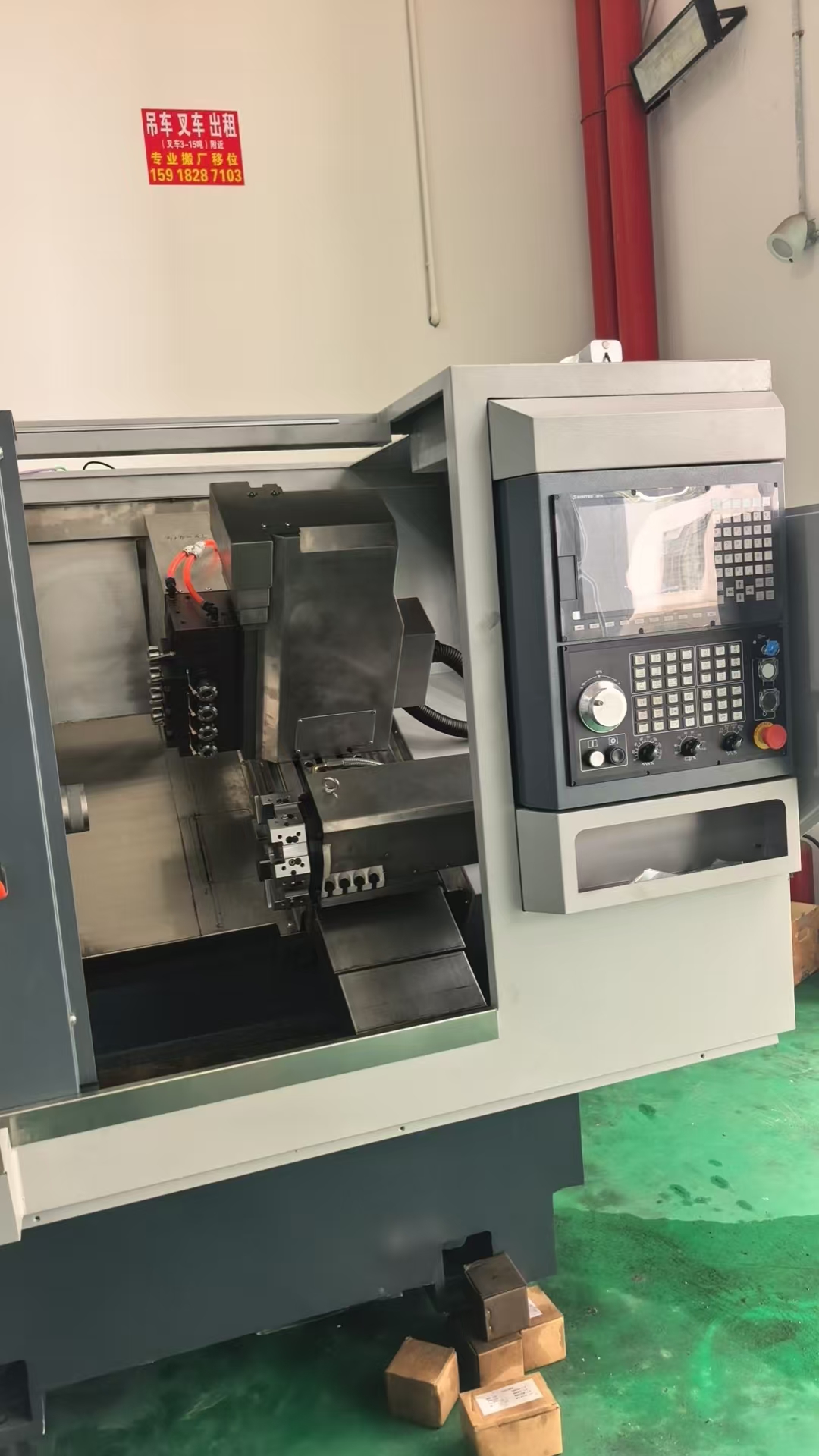

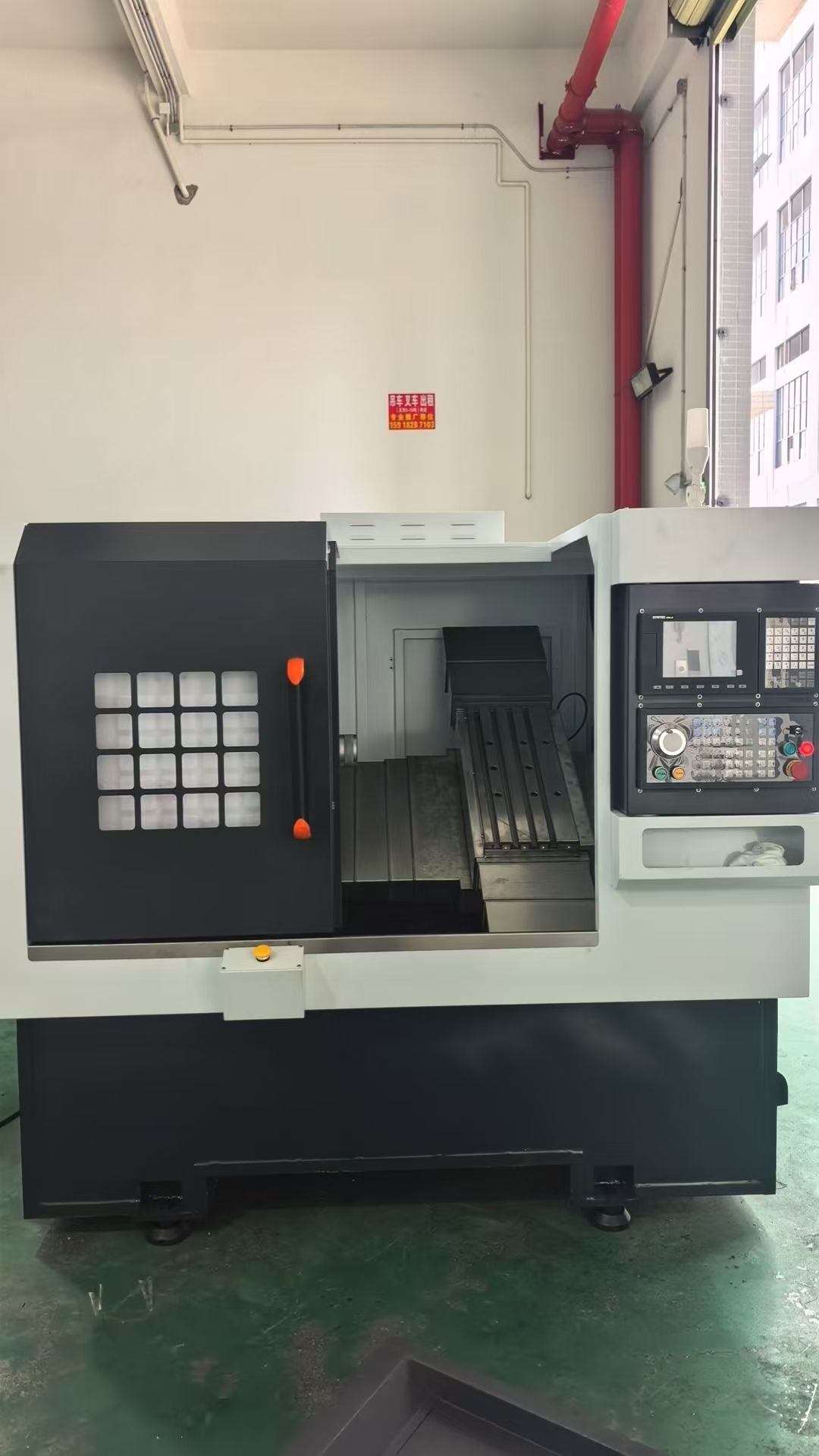

ck46 cnc lathe machine slant bed with robot loader
Machine Tool Overview
Application: Mass part processing, complex operations (external turning, internal boring,
threading, tapping, taper turning, circular arc turning, grooving, parting-off).
Key Features:
1. Heavy-duty anti-deformation patented base for stability.

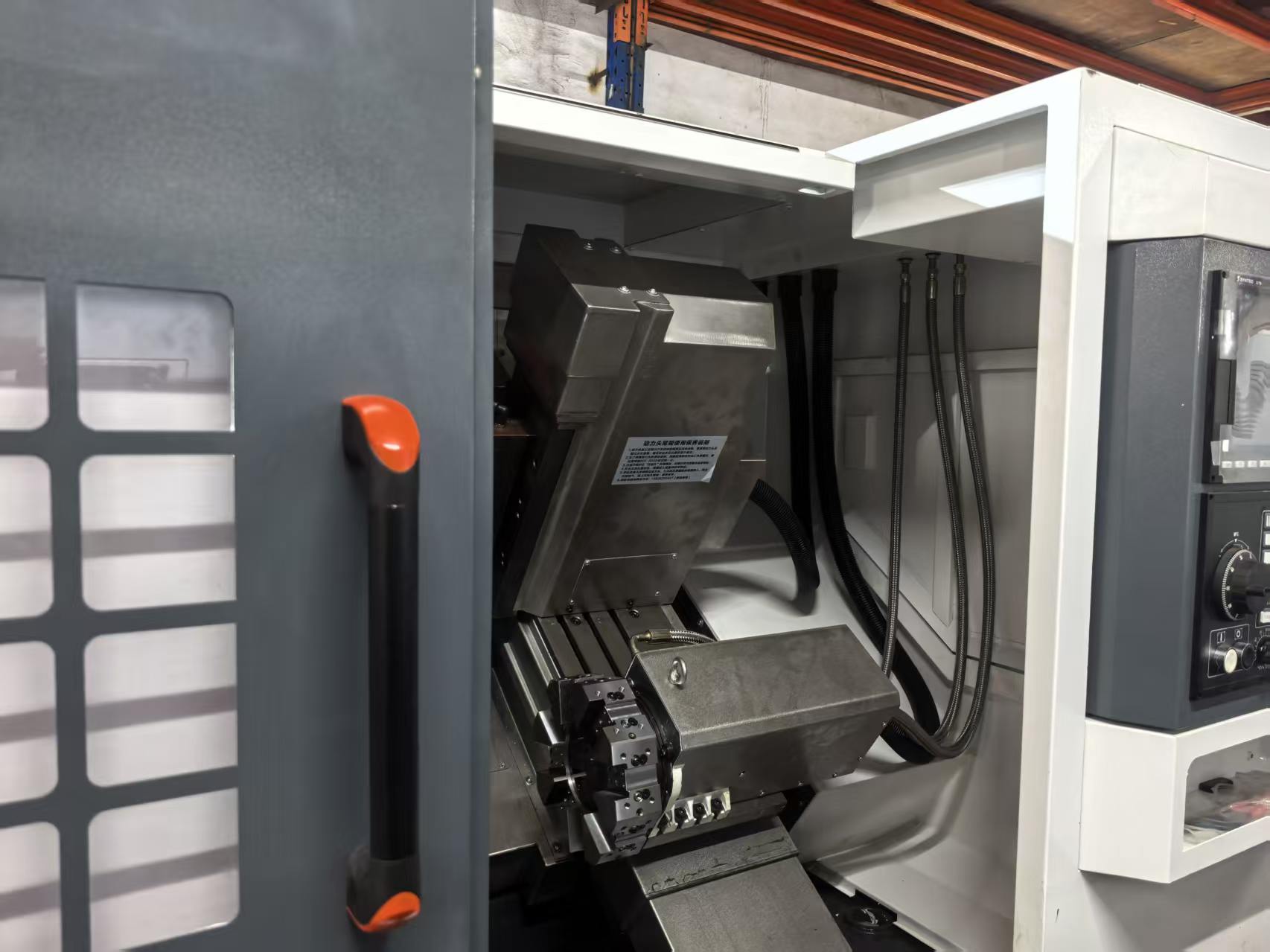

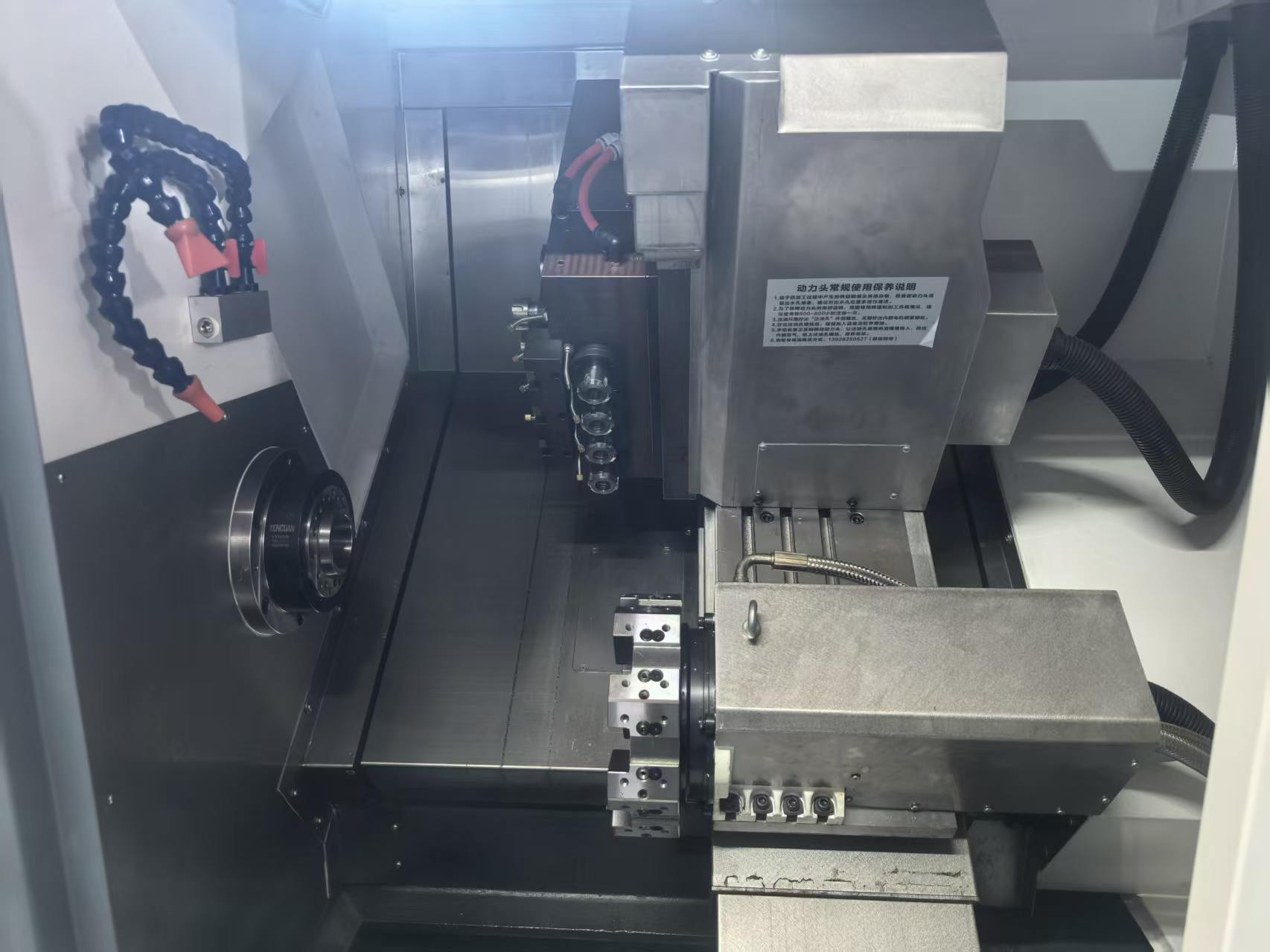

2. 30° slant bed for easy chip removal; high-precision linear ball guide rails for
agility and long-term accuracy.
3. Independently developed CNC system and drive control for high speed and
precision.
4. Professional debugging and 3-ton weight ensure maximum rapid traverse speed
(25 m/min) without vibration.
5. Optional collet (mass processing) or hollow hydraulic chuck (manual loading).
III. Structural and Configuration Features
1. Castings: High-quality resin sand molding, high-strength cast iron with aging treatment.
2. Spindle: Independently developed cartridge spindle unit (sealed, high-speed,
grease-lubricated, maintenance-free).
3. Feed System: X/Z-axis servo motors connected to ball screws via elastic couplings;
high-rigidity angular contact bearings; pre-stretched screws to reduce thermal
deformation.
4. Protection: Fully enclosed cover for operator safety and coolant leakage prevention.
5. Lubrication: Timed centralized oil supply with detection positive displacement
distributor and high-pressure pump.6. Cooling and Chip Removal: High-power water pump; large inclined chip discharge port
(manual removal standard, automatic optional).

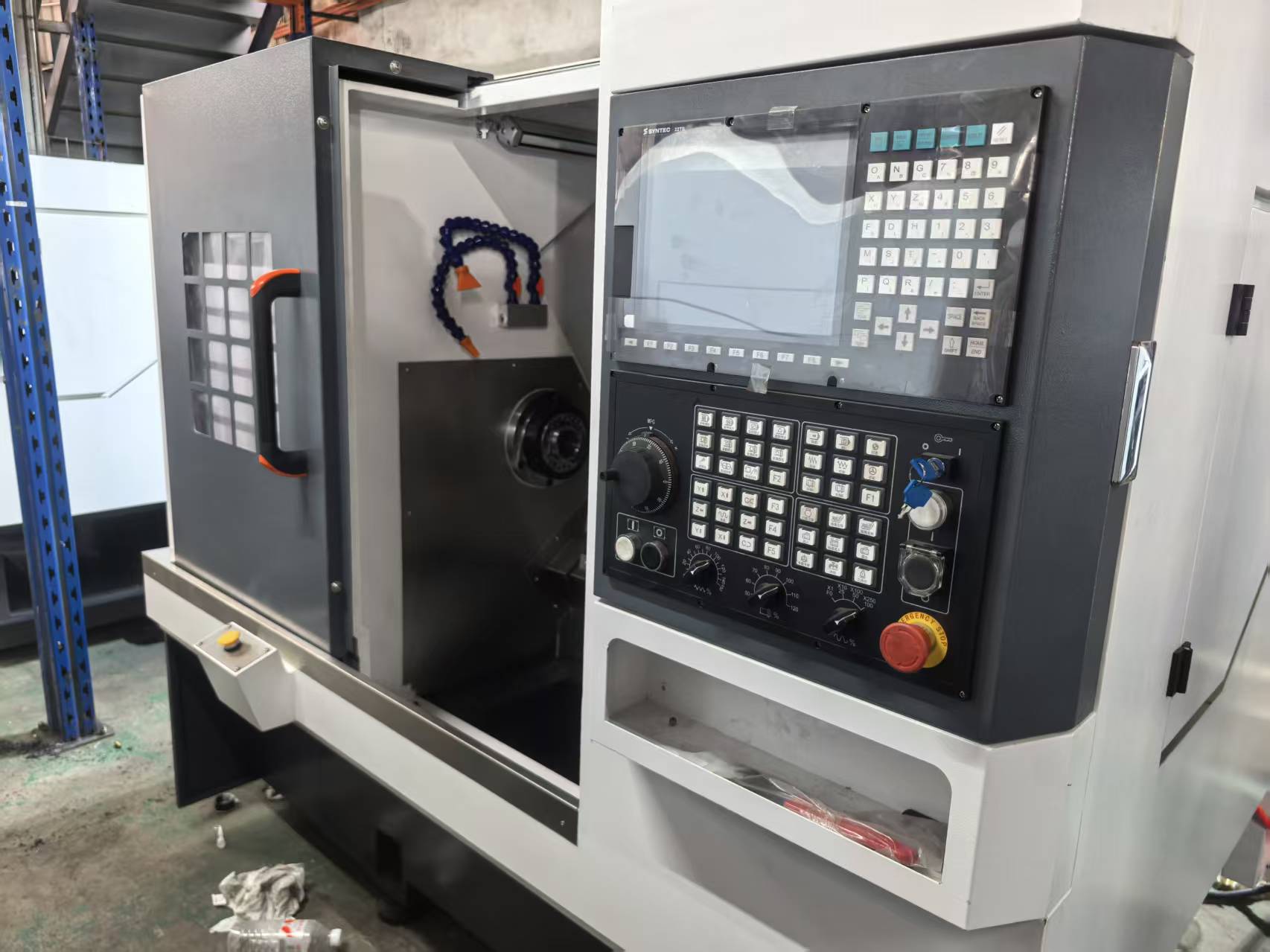

7. CNC System: Yashu’s newly developed system (combines imported/domestic advantages,
precise algorithms, fast response).
IV. Parameters

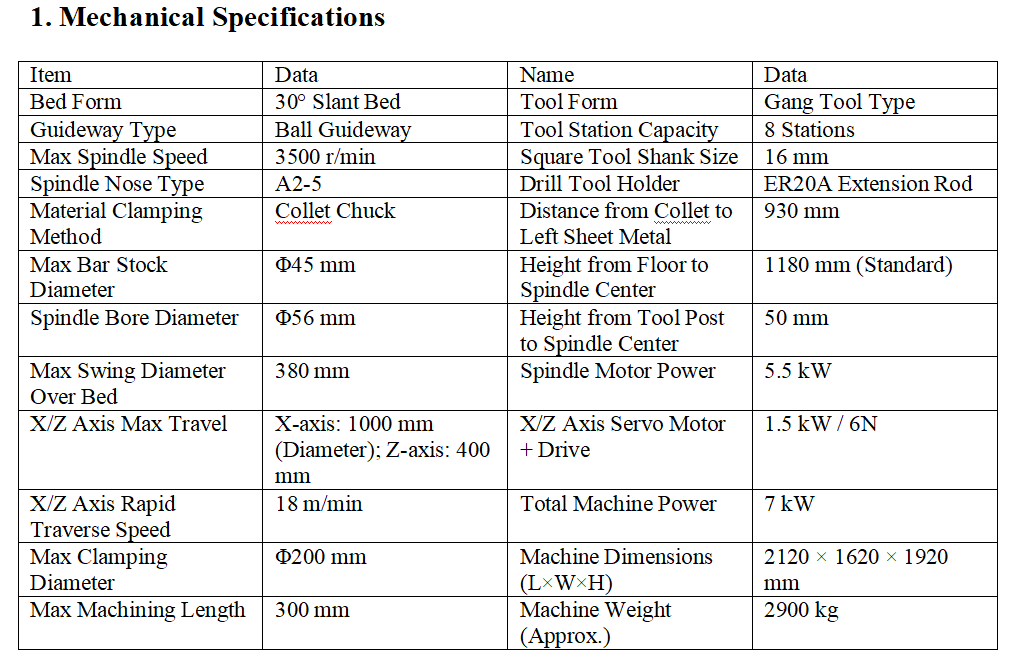

Mechanical Specifications:
Item
Data
Item
Data
Bed Type
30° Slant Bed
Tool Type
Tool Turret Type
Guide Rail Type Ball Guide Rail
Tool Station
Capacity
8 Stations
Max Spindle
Speed
3500 r/min
Square Tool Spec
16 mm
Spindle Nose
Type
A2-5
Drilling Tool
Holder
ER20A Extension
Rod
Material
Clamping Method
Collet
Distance from
Collet to Left Sheet
Metal
930 mm
Max Bar Diameter
Through Spindle
Φ45
Height from Ground
to Spindle Center
1180 mm
(Standard)
Spindle Bore
Diameter
Φ56
Height from Tool
Station to Spindle
Center
50 mm
Max Swing
Diameter on Bed
Φ380
Spindle Motor
5.5 KW
Max Travel (X/Z
Axis)
X: 1000 mm
(Diameter), Z:
400 mm
X/Z Axis Servo Motor
+ Drive
1.5 KW / 6N
Rapid Traverse
Speed (X/Z Axis)
18 m/min
Total Machine Power 7 KW
Max Clamping
Diameter
Φ200
Machine Dimensions
(L×W×H)
2120×1620×1920
mm
Max Machining
Length
300 mm
Machine Weight
~2900 kg

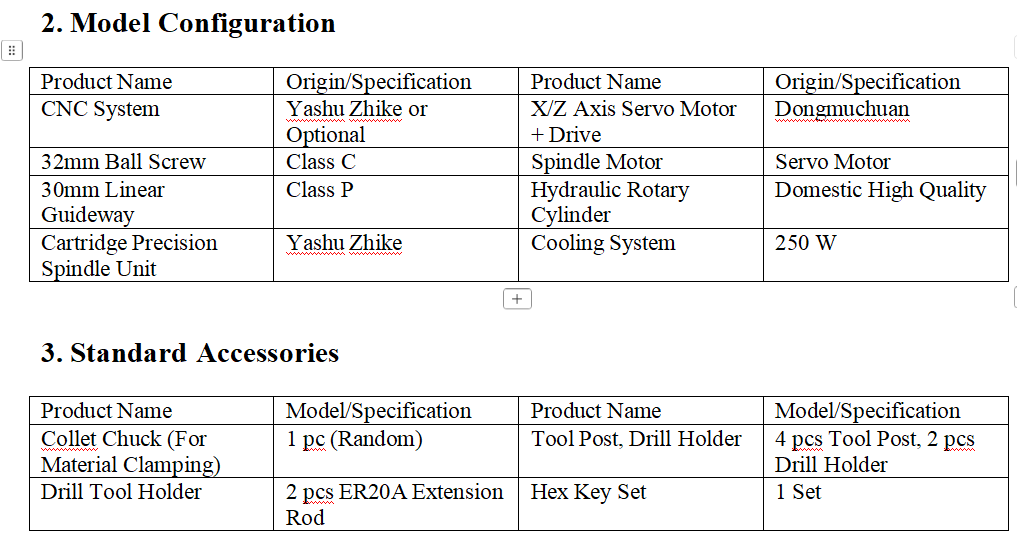

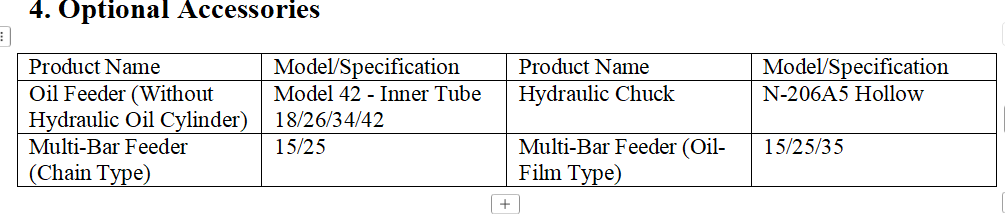

Product
Origin/Spec
Product
Origin/Spec
CNC System
Yashu or
Customizable
X/Z Axis Servo
Motor + Drive
Dongmchuan
32 Ball Screw
Grade C
Spindle Motor
Servo Motor
30 Ball Guide Rail Grade P
Hydraulic Rotary High-quality
